乐得瑞批量生产基于GOOGLE TWINKIES的USB PD协议分析仪LDR-PD01

发布日期:2016-05-10 | 点击: | 字号:

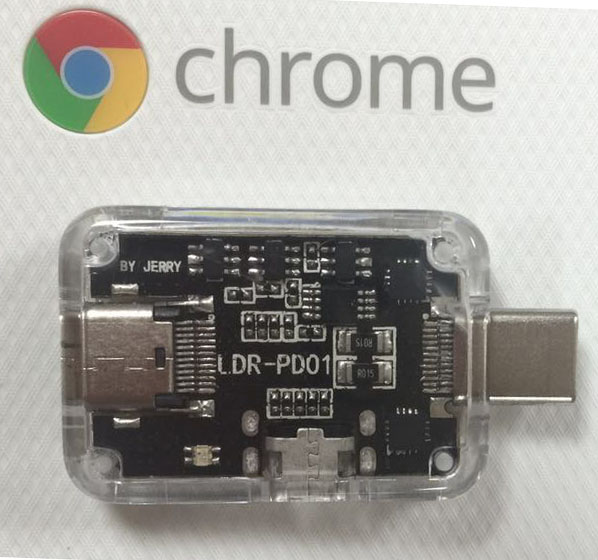

       LDR-PD01是基于google twinkies技术的USB PD协议分析仪,可以简单方便的抓取USB PD通信过程的协议包,并进行分析。请发邮件到liuxin@legendary.net.cn索要报价单,注明贵司名称及联系人和联系方式。



Overview

       This page describes a USB-PD sniffing dongle with Type-C connectors. The dongle can be supported by Chrome devices as part of a USB-Type C implementation.





Hardware Capabilities

       Sniffing USB Power Delivery traffic on both        Control Channel lines (CC1/CC2)

       Transparent interposer on a USB Type-C        connection

       Monitoring VBUS and VCONN voltages and        currents

       Injecting PD packets on CC1 or CC2

       Putting Rd/Rp/Ra resistors on CC1 or CC2

       Complete schematics, layout, and enclosure are attached at the bottom of this page.
